Contractual warranty | |
| range of product | Actassi |

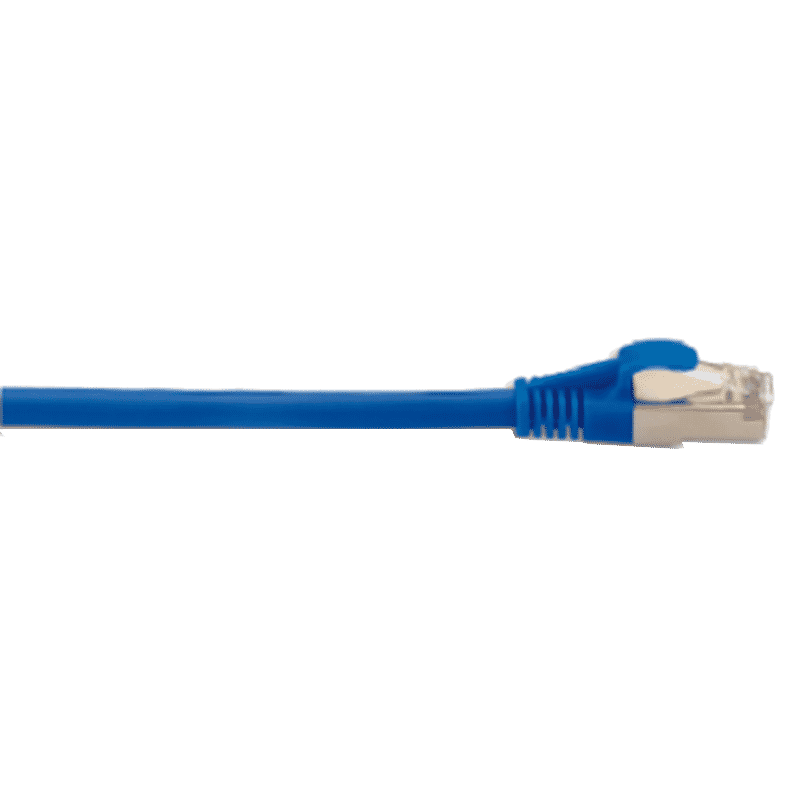

| product or component type | Patch cord |
| colour tint | Blue |
| rated voltage | 150V AC |
| [In] rated current | 1.5A |
| insulation resistance | 500MOhm |
| type of cable | 4pair cables |
| cable length | 1m |
| cable shielding type | FTP |
| communication network category | 6 |
| return loss | 27dB |
| attenuation | 0.1dB |
| near end crosstalk [NEXT] | 55.1dB |
| power sum near-end crosstalk [PS NEXT] | 52dB |
| far end crosstalk [FEXT] | 49.8dB |
| power sum far end crosstalk [PSFEXT] | 46.9dB |
| number of matings | 1000cycles |
| contact resistance | 10mOhm |
| contacts material | Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| flame retardance | CM |
| standards | IEC 60603-7 |
| RoHS (date code: YYWW) | <a href="http://www.reach.schneider-electric.com/DistantRequestDispatcher.aspx?action=export&pid=66031470&lang=en-us" rel="noopener" target="_blank">Compliant – since 1101 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity</a> |
| REACh | <a href="https://www.reach.schneider-electric.com/DistantRequestDispatcher.aspx?action=check&pid=66031470&lang=en-us" rel="noopener" target="_blank">Reference not containing SVHC above the threshold</a> |
| Product end of life instructions | Need no specific recycling operations |
| Warranty period | 18months |
| دسته بندی | پچ کورد |
| نوع | Cat6 |
| متراژ | 1m, 3m |
