کیستون Cat 6FTP نسخه panel مدل ACTRJSM6NSSP اکتاسی اشنایدر۱۳۹۷/۵/۳ ۱۴:۱۲:۲۰

Project Description

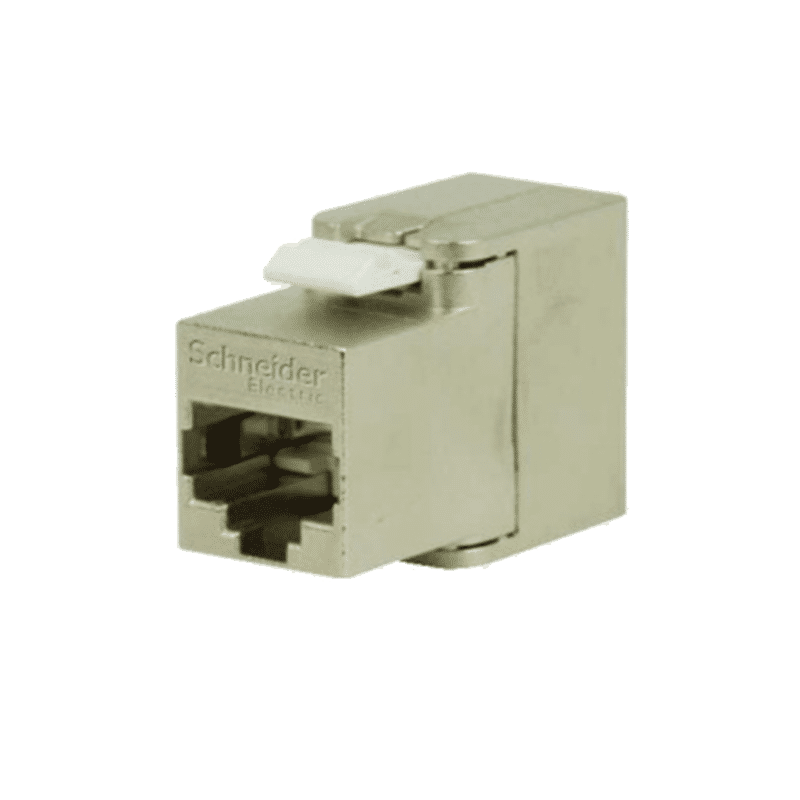

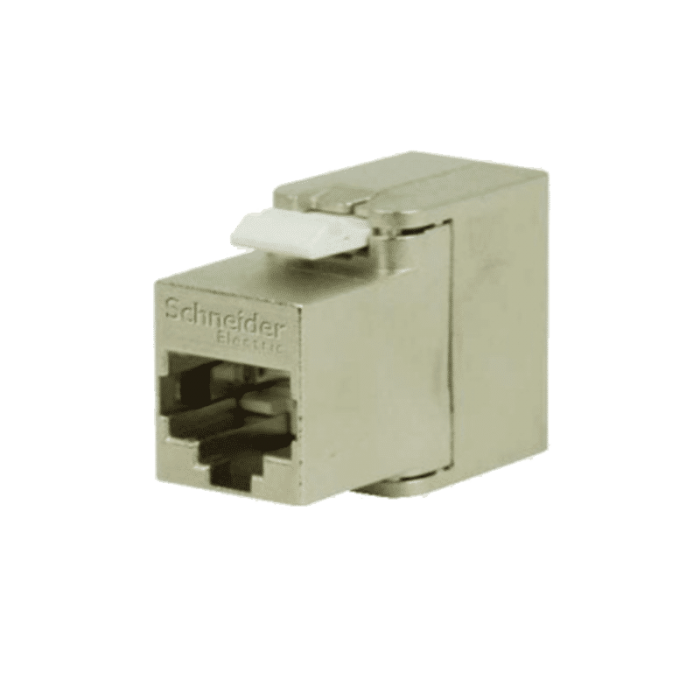

کیستون اکتاسی Cat 6FTP نسخه panel مدل ACTRJSM6NSSP

  • دارای بدنه فلزی و محل پانج سیم ارت

  • دارای استاندار های IEC 11801 class E و NZS 3080:2003 class E و TIA/EIA 568 B



Main
Actassi
range
Keystone modular jack
product or component type
Without shutter
provided equipment
Metalcolour tint
For panel
product specific application
Complementary
FTPcable shielding type
RJ45
(Cat6)
connector type
18dB, at 200 MHz
30dB, at 1 MHz
30dB, at 4 MHz
30dB, at 10 MHz
30dB, at 16 MHz
30dB, at 20 MHz
30dB, at 31.25 MHz
28.1dB, at 62.5 MHz
24dB, at 100 MHz
16dB, at 250 MHz




return loss
75dB at 1 MHz
75dB at 4 MHz
74dB at 10 MHz
69.9dB at 16 MHz
68dB at 20 MHz
64.1dB at 31.25 MHz
58.1dB at 62.5 MHz
54dB at 100 MHz
48dB at 200 MHz
46dB at 250 MHz
near end crosstalk
[NEXT]
71dB at 1 MHz
71dB at 4 MHz
70dB at 10 MHz
65.9dB at 16 MHz
64dB at 20 MHz
60.1dB at 31.25 MHz
54.1dB at 62.5 MHz
50dB at 100 MHz
44dB at 200 MHz
42dB at 250 MHz
power sum near-end crosstalk
[PS NEXT]
0.1dB at 1 MHz
0.1dB at 4 MHz
0.1dB at 10 MHz
0.1dB at 16 MHz
0.1dB at 20 MHz
0.11dB at 31.25 MHz
0.16dB at 62.5 MHz
0.2dB at 100 MHz
0.28dB at 200 MHz
0.32dB at 250 MHz
insertion loss
72dB at 1 MHz
68.1dB at 4 MHz
60.1dB at 10 MHz
56dB at 16 MHz
54.1dB at 20 MHz
50.2dB at 31.25 MHz
44.2dB at 62.5 MHz
40.1dB at 100 MHz
34.1dB at 200 MHz
32.1dB at 250 MHz
power sum far end crosstalk [PSFEXT]
Environment
FCC part 68 F
IEC 60603-7
product certifications
IEC 11801 class E
NZS 3080:2003 class E
TIA/EIA 568 B
standards
Offer Sustainability
Compliant – since 1101 – Schneider Electric declaration of conformity Schneider Electric declaration of conformityRoHS
(date code: YYWW)
Reference not containing SVHC above the thresholdREACh
Need no specific recycling operations
Product end of life instructions
Contractual warranty
18months
Warranty period

توضیحات محصول

کیستون شیلدار  Cat 6FTP مدل ACTRJSM6NSSP  اشنایدر اکتاسی نسخه panel

کیستون شیلدار Cat 6FTP  مدل ACTRJSM6NSSP  اشنایدر اکتاسی نسخه ی panel دارای استاندارد IEC 11801   class E و NZS 3080:2003 class E و TIA/EIA 568 B بوده و در رنگبندی متنوع قابل عرضه میباشد.
