Project Description

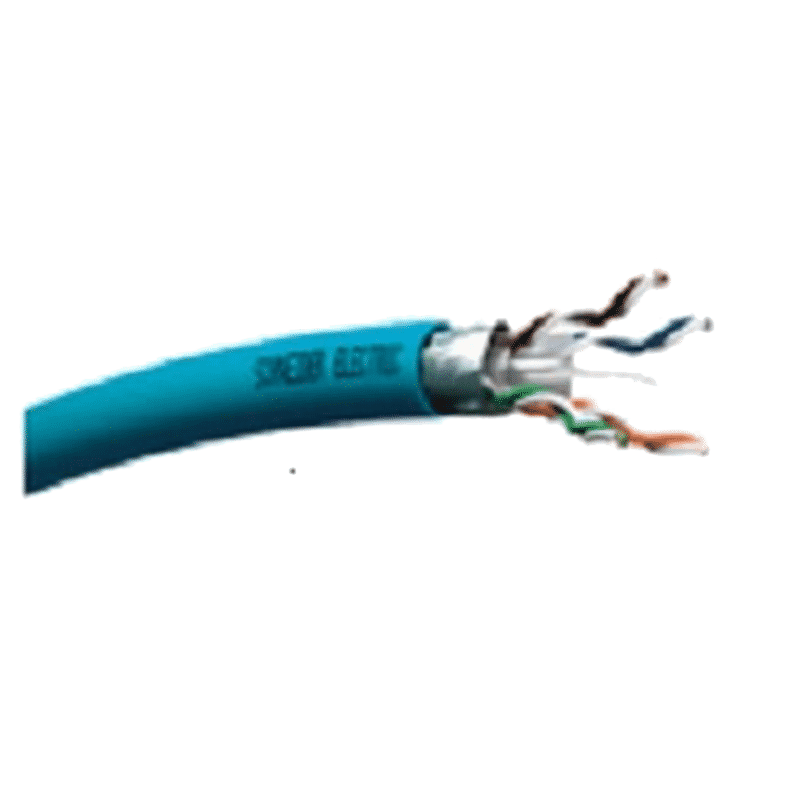

کابل شبکه Cat 6A FTP اکتاسی

    Main
    Actassi
    range
    Network cable
    product or component type
    4twisted-pairs cable
    type of cable
    U/FTPcable shielding type
    6A
    communication network category
    VoIP - Voice IP
    PoE 15W - Power over Ethernet
    PoE+ 30W - Power over Ethernet Plus
    communication port protocol
    10GBASE-Tcommunication network type
    Bluecolour tint
    Jacket : LSZH - low smoke zero halogen
    Conductor : solid bare copper
    Wire insulation : PE - polyethylene
    localisation on device
    Complementary
    Guaranteed: 23 dB Typical: 26 dB @4 MHz
    Guaranteed: 25 dB Typical: 28 dB @16 MHz
    Guaranteed: 25 dB Typical: 28 dB @20 MHz
    Guaranteed: 23.6 dB Typical: 26.9 dB @31.25 MHz
    Guaranteed: 21.5 dB Typical: 25.3 dB @62.5 MHz
    Guaranteed: 20.1 dB Typical: 24.2 dB @100 MHz
    Guaranteed: 18 dB Typical: 22.5 dB @200 MHz
    Guaranteed: 17.3 dB Typical: 22 dB @250 MHz
    Guaranteed: 17.3 dB Typical: 22 dB @300 MHz
    Guaranteed: 17.3 dB Typical: 22 dB @400 MHz
    Guaranteed: 17.3 dB Typical: 20.3 dB @500 MHz
    Guaranteed: 25 dB Typical: 28.26 dB @10 MHz
    Guaranteed: 19.4 dB Typical: 23.36 dB @125 MHz




    return loss
    3.8dB 4 MHz 3.7 dB
    7.5dB 16 MHz 6.9 dB
    8.4dB 20 MHz 7.7 dB
    10.5dB 31.25 MHz 9.6 dB
    15dB 62.5 MHz 13.7 dB
    19.1dB 100 MHz 17.5 dB
    21.5dB 125 MHz 19.7 dB
    27.6dB 200 MHz 25.2 dB
    31.1dB 250 MHz 28.4 dB
    34.3dB 300 MHz 31.32 dB
    40.1dB 400 MHz 36.62 dB
    45.3dB 500 MHz 41.4 dB
    5.9dB 10 MHz 5.74 dB





    attenuation
    Guaranteed: 72.9 dB Typical: 53.1 dB @31.25 MHz
    Guaranteed: 68.4 dB Typical: 51.2 dB @62.5 MHz
    Guaranteed: 65.3 dB Typical: 85.5 dB @100 MHz
    Guaranteed: 63.8 dB Typical: 85.5 dB @125 MHz
    Guaranteed: 60.8 dB Typical: 84.62 dB @200 MHz
    Guaranteed: 59.3 dB Typical: 83.09 dB @250 MHz
    Guaranteed: 78 dB Typical: 68.5 dB @4 MHz
    Guaranteed: 78 dB Typical: 62.7 dB @10 MHz
    Guaranteed: 77.2 dB Typical: 58.8 dB @16 MHz
    Guaranteed: 75.8 dB Typical: 57.45 dB @20 MHz
    Guaranteed: 58.1 dB Typical: 63.69 dB @300 MHz
    Guaranteed: 56.3 dB Typical: 61.71 dB @400 MHz
    Guaranteed: 54.8 dB Typical: 60.07 dB @500 MHz


    near end crosstalk
    [NEXT]
    Guaranteed: 75 dB Typical: 85.5 dB @4 MHz
    Guaranteed: 75 dB Typical: 85.5 dB @10 MHz
    Guaranteed: 74.2 dB Typical: 84.59 dB @16 MHz
    Guaranteed: 72.8 dB Typical: 82.99 dB @20 MHz
    Guaranteed: 69.9 dB Typical: 79.69 dB @31.25 MHz
    Guaranteed: 65.4 dB Typical: 74.56 dB @62.5 MHz
    Guaranteed: 62.3 dB Typical: 71.02 dB @100 MHz
    Guaranteed: 60.8 dB Typical: 69.31 dB @125 MHz
    Guaranteed: 57.8 dB Typical: 65.89 dB @200 MHz
    Guaranteed: 56.3 dB Typical: 64.18 dB @250 MHz
    Guaranteed: 55.1 dB Typical: 62.81 dB @300 MHz
    Guaranteed: 53.3 dB Typical: 60.76 dB @400 MHz
    Guaranteed: 51.8 dB Typical: 59.05 dB @500 MHz




    power sum near-end crosstalk
    [PS NEXT]
    Guaranteed: 66 dB Typical: 83 dB @4 MHz
    Guaranteed: 58 dB Typical: 72.94 dB @10 MHz
    Guaranteed: 53.9 dB Typical: 70.8 dB @16 MHz
    Guaranteed: 52 dB Typical: 68.8 dB @20 MHz
    Guaranteed: 48.1 dB Typical: 64.9 dB @31.25 MHz
    Guaranteed: 42.1 dB Typical: 58.8 dB @62.5 MHz
    Guaranteed: 38 dB Typical: 54.7 dB @100 MHz
    Guaranteed: 36.1 dB Typical: 51.97 dB @125 MHz
    Guaranteed: 32 dB Typical: 48.6 dB @200 MHz
    Guaranteed: 30 dB Typical: 46.6 dB @250 MHz
    Guaranteed: 28.5 dB Typical: 44.27 dB @300 MHz
    Guaranteed: 26 dB Typical: 40.39 dB @400 MHz
    Guaranteed: 24 dB Typical: 40.5 dB @500 MHz




    attenuation to Crosstalk Ratio Far-end
    [ACR-F]
    Guaranteed: 63 dB @4 MHz
    Guaranteed: 55 dB @10 MHz
    Guaranteed: 50.9 dB @16 MHz
    Guaranteed: 49 dB @20 MHz
    Guaranteed: 45.1 dB @31.25 MHz
    Guaranteed: 39.1 dB @62.5 MHz
    Guaranteed: 35 dB @100 MHz
    Guaranteed: 33.1 dB @125 MHz
    Guaranteed: 29 dB @200 MHz
    Guaranteed: 27 dB @250 MHz
    Guaranteed: 25.5 dB @300 MHz
    Guaranteed: 23 dB @400 MHz
    Guaranteed: 21 dB @500 MHz
    power sum attenuation crosstalk ratio far-end
    [PS ACR-F]
    Guaranteed: 66.2 dB @4 MHz
    Guaranteed: 58.2 dB @10 MHz
    Guaranteed: 54.1 dB @16 MHz
    Guaranteed: 52.2 dB @20 MHz
    Guaranteed: 48.3 dB @31.25 MHz
    Guaranteed: 42.3 dB @62.5 MHz
    Guaranteed: 38.2 dB @100 MHz
    Guaranteed: 36.3 dB @125 MHz
    Guaranteed: 32.2 dB @200 MHz
    Guaranteed: 30.2 dB @250 MHz
    Guaranteed: 28.7 dB @300 MHz
    Guaranteed: 26.2 dB @400 MHz
    Guaranteed: 24.2 dB @500 MHz
    power sum attenuation to alien crosstalk ratio far-end
    [PS AACR-F]
    Guaranteed: 67 dB @4 MHz
    Guaranteed: 67 dB @10 MHz
    Guaranteed: 67 dB @16 MHz
    Guaranteed: 67 dB @20 MHz
    Guaranteed: 67 dB @31.25 MHz
    Guaranteed: 65.6 dB @62.5 MHz
    Guaranteed: 62.5 dB @100 MHz
    Guaranteed: 61 dB @125 MHz
    Guaranteed: 58 dB @200 MHz
    Guaranteed: 56.5 dB @250 MHz
    Guaranteed: 55.3 dB @300 MHz
    Guaranteed: 53.5 dB @400 MHz
    Guaranteed: 52 dB @500 MHz
    power sum alien near-end crosstalk
    [PS ANEXT]
    100Ohm @1…550 MHz
    input impedance
    45ns @1…550 MHz=>
    delay skew
    % 2 =>
    resistance unbalance
    40-10xlog(f) dB from 1…250 MHz=<
    (IEC 61156-5, ed. 2.1)
    transverse conversion loss
    55dB from 30…100 MHz =<
    (IEC 61156-5, ed. 2 type II)



    55-20xlog10(f / 100) dB from 100…1000 MHz=<
    (IEC 61156-5, ed. 2 type II)
    coupling attenuation
    Class c
    (EN 50174-2)
    segregation class
    0.8nominal velocity propagation
    392N=>
    pulling force
    518MJ/km
    calorific value
    AWG 23
    AWG gauge
    Minimum bending radius after installation : 4 x overall diameter
    Minimum bending radius during installation : 8 x overall diameter
    bending radius
    7.1mm
    cable outer diameter
    Drum of 500 m
    cable packaging
    48kg/km
    cable weight
    Environment
    0°C…50°Cambient air temperature for installation
    20°C…60°C-ambient air temperature for operation
    20°C…60°C-ambient air temperature for storage
    60°C
    temperature resistance
    2006/95
    low voltage directive

    2011/65
    RoHS directive
    directives
    Halogen gas evolution : IEC 60754-1
    Acidity of combustion gases : IEC 60754-2
    Smoke generation : IEC 61034
    Performance : EN 50173-1
    Performance : EN 50174-1
    Performance : ANSI/TIA/EIA-568-C.2
    Flame propagation characteristics : IEC 60332-1
    Installation standards : ISO/IEC 14763-2
    Performance : prEN 50288-10-1
    Performance : IEC 61156-5 ed. 2.1
    Performance : ISO/IEC 11801 ed. 2.2, 2011
    Performance : ISO/IEC 11801 ed. 2.1
    Installation standards : EN 50174-2
    Performance : IEEE 802.3af
    Performance : IEEE 802.3at
    standards
    Offer Sustainability
    Green Premium product
    Sustainable offer status
    Compliant – since 1052 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity
    RoHS
    (date code: YYWW)
    Reference not containing SVHC above the threshold
    REACh
    Available Product environmental
    Product environmental profile
    Need no specific recycling operations
    Product end of life instructions
    Contractual warranty
    18 months
    Warranty period

    توضیحات محصول

    کابل شبکه Cat 6A FTP اشنایدر اکتاسی، 4 زوج شیلدار با هادی مسی 23AWG، روکش FTP و دارای امپدانس 100 اهم می ­باشد. سرعت و پهنای باند اشنایدر اکتاسی 500   مگا هرتز است. کابل های اکتاسی دارای قابلیت نصب افقی در شبکه های محلی را هستند. کابل های شبکه اشنایدر اکتاسی در حلقه های 500 متری و به رنگ سبز و روی قرقره  قابل ارائه می باشد.
