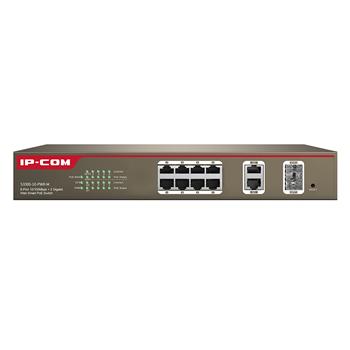

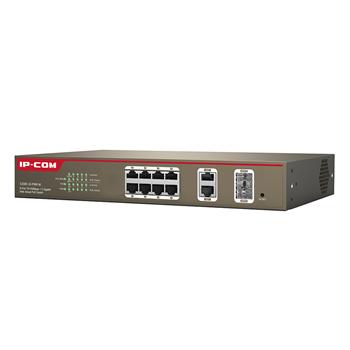

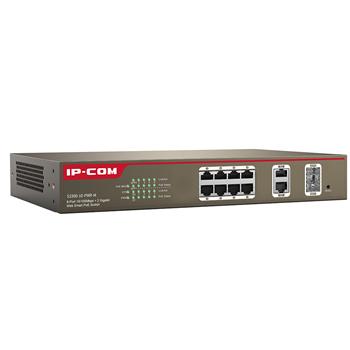

سوییچ 8 پورت (S3300-10-PWR-M(F1210P آی پی کام

سوئیچ Web Smart
8 پورت 10/100Mbps
۲ پورت 10/100/1000Mbps
8 پورت POE
استاندارد IEEE 802.3af/at
2 پورت (SFP (combo
توان 125W
3 سال گارانتی آونگ

ناموجود

0 نفر در حال مشاهده محصول هستند

توضیحات

مشخصات

Standard and protocol supported	IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at
Storage Temperature	40c-70c
Indicator LEDs	Link/Act, PoE Status,System, Power,PoE Max
Fixed Ports	8port 10/100Base-TX 2port 10/100/1000Base-T (2port 1000Base-X SFP (Combo
lightning protection	6KV=<
Store and forward	Yes
Exchange capacity	5.6Gbit/s
MAC address entries	4K MAC
Power supply module	(Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W
PoE through pin	1,2,4,5 + 3,6,7,8, –
Voltage input range	AC：100－240V～ 50/60Hz
Dimension	293mm178.8mm44mm
Weight	5kg>=
Total power consumption	150> WPoE consumption up to 130W
perating temperature	0c-40c
MTBF	100,000hours
(Relative humidity(Storage	10%-95% (noncondensing）
(Relative humidity(Operational	10%-95% (noncondensing）
PoE management	Support setup of PoE Support power adjustable by priority Support over temperature protection for PoE module
VLAN	Support VLAN(4K) based on ports Support 802.1QVLAN
Mirroring	Support local mirror image
Link aggregation	Support LACP, manual link aggregation Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS	Support message transmission for ports and limitation of speed Support SP & WRR
Layer 2 ring network protocol	Support STP/RSTP and looped Network for devices
Certification	FCC/CE/RoHS
محل استفاده	Rackmount
تعداد پورت	18 تا 28 پورت
PoE	802.11af, 802.11at
نوع پورت	Fast Ethernet
نوع پورت آپلینک	Copper/Gigabit Fiber combo, Gigabit Ethernet, Gigabit Fiber
برند	IP-COM
