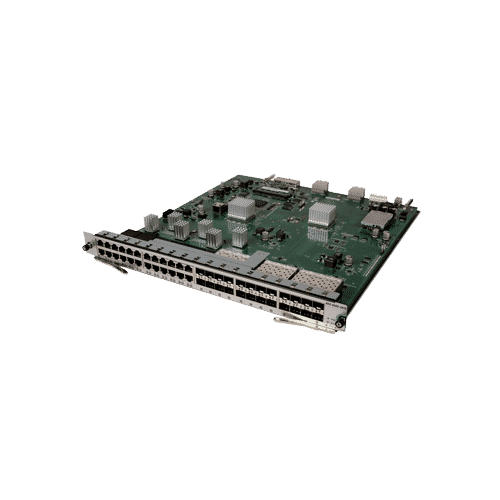

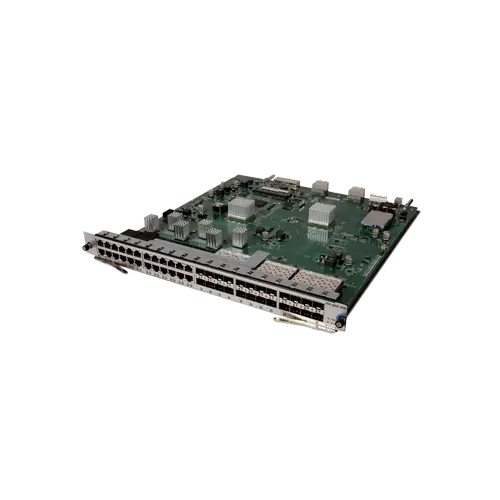

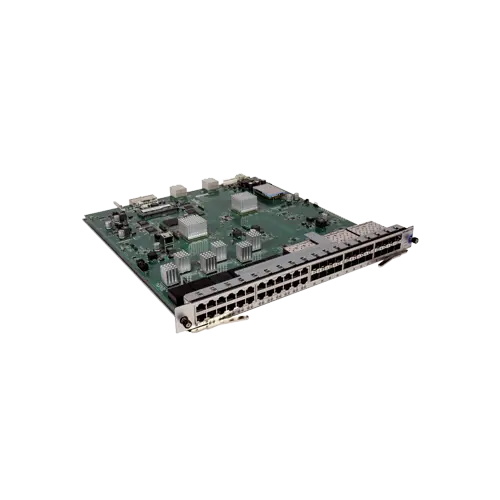

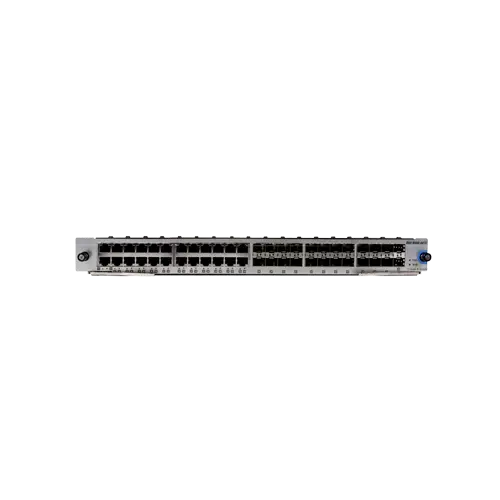

DGS-6600-48TS یکی از سوییچ های سری DGS-6600 است. این ماژول دارای 48 پورت است. سری سوییچ های DGS-6600 برای نصب در شاسی هستند که برای شرکت های کوچک و متوسط طراحی شده اند. این سری سوییچ ها گزینه های مناسبی برای استقرار در محیط هایی هستند که نیاز به اجرای برنامه های کاربردی شبکه دارند انتخابی بی نظیر با عملکرد، امنیت و کنترل بالا محسوب می شوند.
| L2 Features | 32K MAC per I/O module Flow Control (802.3x, HOL Blocking Prevention Jumbo Frame up to 9,732 Bytes (IGMP v1/v2/v3 Snooping (1K groups (Spanning Tree (STP, RSTP, MSTP) 802.3ad Link Aggregation (128 groups, 8 ports per group Port Mirroring RSPAN (ERPS (Ethernet Ring Protection Switching (MLD v1 Snooping (1K groups Loopback Detection L2 Protocol Tunneling |
|---|---|
| VLAN | 4K VLAN 802.1Q Tagged VLAN 802.1v Protocol VLAN Port-based VLAN (Double VLAN (Q-in-Q |
| L3 Features | 4K IP interface VRRP (IPv6 Tunneling (manual, ISATAP, 6to4 IPv6 Ready Phase Proxy ARP Gratuitous ARP |
| L3 Routing | 12K hardware routing entries shared by IPv4/IPv6 8K hardware L3 forwarding entries shared by IPv4/IPv6 Policy-based Route RIP v1/v2, RIPng OSPF v2, v3 +BGP v4, BGPv4 |
| L3 Multicasting | 1K hardware multicast groups PIM-DM PIM-DM v6 PIM-SM PIM-SM v6 PIM Sparse-Dense Mode IGMP v1/v2/v3 DVMRP v3 |
| QoS | (802.1p Class of Service (CoS 8 queues :Queue Handling Strict (Weighted Round Robin (WRR Strict+WRR (Deficit Round Robin (DRR |
| CoS Based on | Switch Port VLAN ID 802.1p Priority Queues MAC Address IPv4/v6 Address DSCP Protocol Type IPv6 Traffic Class IPv6 Flow Label TCP/UDP Port User-defined Packet Content |
| Supports following actions for flows | Remark 802.1p Priority Tag Remark TOS/DSCP Tag Bandwidth Control Committed Information Rate (CIR), min. granularity 64Kbps Port-based Bandwidth Control (Ingress/Egress, min. granularity 64 Kbps) Time-based QoS |
| ACL | Ingress / Egress ACL ACL Based on 802.1p Priority VLAN ID MAC Address IPv4/IPv6 Address or IP Prefix DSCP/IP Precedence IP Protocol Type TCP/UDP Port Number Combination of the above Time-based ACL |
| Security | SSH v2 Port Security up to 16 MAC address per port Broadcast/Multicast/Unicast Storm Control DoS Attack Prevention IP-MAC-Port Binding ARP Spoofing Prevention D-Link Safeguard Engine |
| AAA | 802.1X Port-based Access Control MAC-based Access Control Dynamic VLAN Assignment |
| 3-Level user account | RADIUS Authentication for Switch Access Guest VLAN (Web-based Access Control (WAC Port-based Access Control Host-based Access Control Dynamic VLAN Assignment (MAC-based Access Control (MAC Port-based Access Control Host-based Access Control Dynamic VLAN Assignment |
| Management | (Command Line Interface (CLI Telnet Server Telnet Client TFTP DHCP Server DHCP Relay DHCP Relay option 82 SNMP v1/v2c/v3 SNMP Trap System Log (RMON v1 (1,2,3,9 Groups Flash File System Multiple Images Multiple Configurations Debug command SNTP Trusted Host Microsoft® NLB Support LLDP sFlow |
| Green | Power Saving by Link status Time-based PoE |
| برند | D-link |
