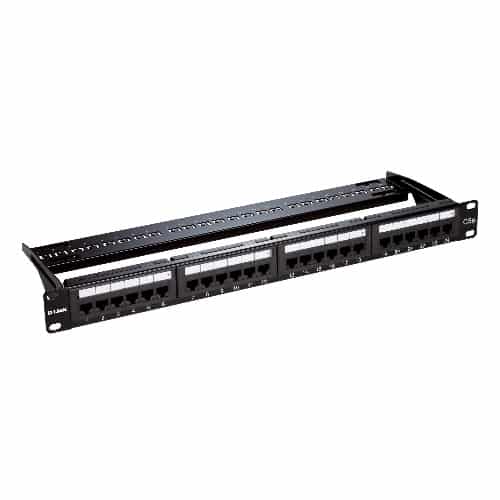

پچ پنل 48/24 پورت Cat 5E UTP مدل NPP-5E1BLKXX1 دی-لینک

Panel: SECC, 1.2mm thickness with Black (RAL 9005)
color painted
RJ45 Jack Housing: PBT+15%GF, UL 94V-0
RJ45 Jack shield: Bronze with Nickel plated
RJ45 Jack Contact Material & Finished:
Material: Phosphor Bronze
Finish: min 3 mm 50 micro-inches Gold plated over Nickel plated
IDC Housing: PC+ 5% Glass Fiber, UL 94V-2
IDC Terminal material & Finished:
Phosphor Bronze with min 50 micro-inch Tin plated
Krone tool only
Suitable for 22-26 AWG solid and stranded wire
Jack Bracket Set: ABS+ PC, UL 94V-0, Black (RAL 9005) color
Dust Cover: PC, UL 94V-0, Transparent Black (RAL 9004) color
Name Plate: PVC, transparent color
Ground wire: 18 AWG wire, with Green/Yellow striped color,
length 40 cm
