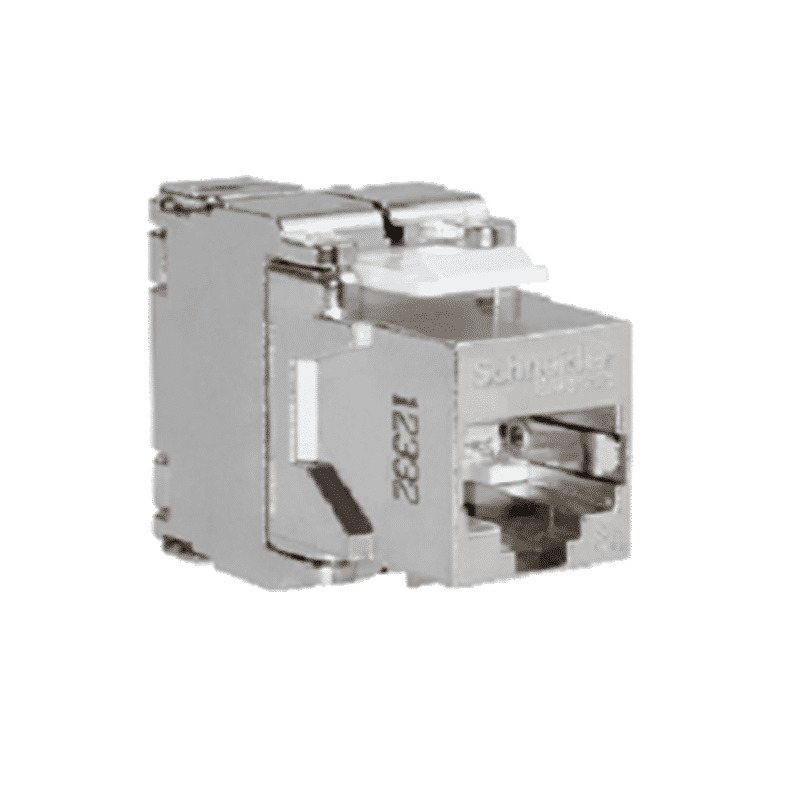

کیستون اکتاسی Cat6 FTP اشنایدر

>کیستون اکتاسی Cat6 FTP اشنایدر
کیستون اکتاسی Cat6 FTP اشنایدر۱۳۹۷/۵/۳ ۱۴:۲۱:۱۹

Project Description

کیستون اکتاسی Cat6 FTP اشنایدر

    Main
    Actassi
    range
    Keystone modular jack
    product or component type
    Without shutter
    provided equipment
    Metalcolour tint
    Complementary
    FTPcable shielding type
    RJ45
    (Cat6)
    connector type
    18dB, at 200 MHz
    30dB, at 1 MHz
    30dB, at 4 MHz
    30dB, at 10 MHz
    30dB, at 16 MHz
    30dB, at 20 MHz
    30dB, at 31.25 MHz
    28.1dB, at 62.5 MHz
    24dB, at 100 MHz
    16dB, at 250 MHz



    return loss
    75dB at 1 MHz
    75dB at 4 MHz
    74dB at 10 MHz
    69.9dB at 16 MHz
    68dB at 20 MHz
    64.1dB at 31.25 MHz
    58.1dB at 62.5 MHz
    54dB at 100 MHz
    48dB at 200 MHz
    46dB at 250 MHz



    near end crosstalk
    [NEXT]
    71dB at 1 MHz
    71dB at 4 MHz
    70dB at 10 MHz
    65.9dB at 16 MHz
    64dB at 20 MHz
    60.1dB at 31.25 MHz
    54.1dB at 62.5 MHz
    50dB at 100 MHz
    44dB at 200 MHz
    42dB at 250 MHz



    power sum near-end crosstalk
    [PS NEXT]
    0.1dB at 1 MHz
    0.1dB at 4 MHz
    0.1dB at 10 MHz
    0.1dB at 16 MHz
    0.1dB at 20 MHz
    0.11dB at 31.25 MHz
    0.16dB at 62.5 MHz
    0.2dB at 100 MHz
    0.28dB at 200 MHz
    0.32dB at 250 MHz



    insertion loss
    72dB at 1 MHz
    68.1dB at 4 MHz
    60.1dB at 10 MHz
    56dB at 16 MHz
    54.1dB at 20 MHz
    50.2dB at 31.25 MHz
    44.2dB at 62.5 MHz
    40.1dB at 100 MHz
    34.1dB at 200 MHz
    32.1dB at 250 MHz



    power sum far end crosstalk
    [PSFEXT]
    Environment
    FCC part 68 F
    IEC 60603-7
    product certifications
    IEC 11801 class E
    NZS 3080:2003 class E
    TIA/EIA 568 B
    standards
    Offer Sustainability
    Compliant – since 1101 – Schneider Electric declaration of conformity Schneider Electric declaration of conformityRoHS
    (date code: YYWW)
    Reference not containing SVHC above the threshold
    REACh
    Need no specific recycling operations
    Product end of life instructions
    Contractual warranty
    18months
    Warranty period

    توضیحات محصول

    کیستون شیلدار Cat 6FTP اشنایدر اکتاسی

    برند: اشنایدر اکتاسی (Schneider Actassi)

    کشور: فرانسه

    توضیحات:

    کیستون شیلدار Cat 6FTP اشنایدر اکتاسی  دارای استاندارد IEC 11801 class E  و  NZS 3080:2003 class E  و TIA/EIA 568 B بوده و در رنگبندی متنوع قابل عرضه میباشد.
