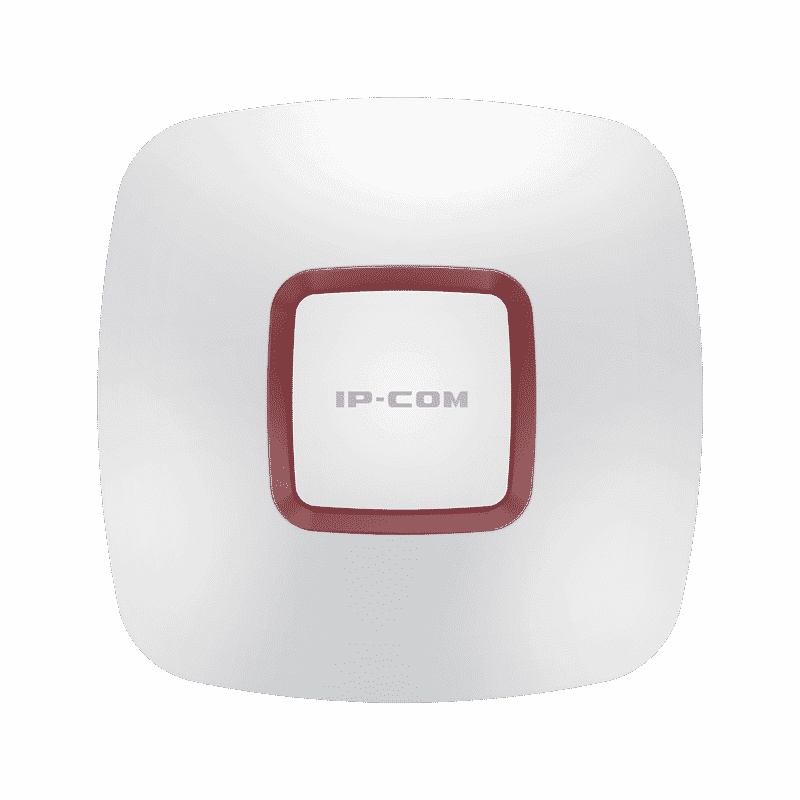

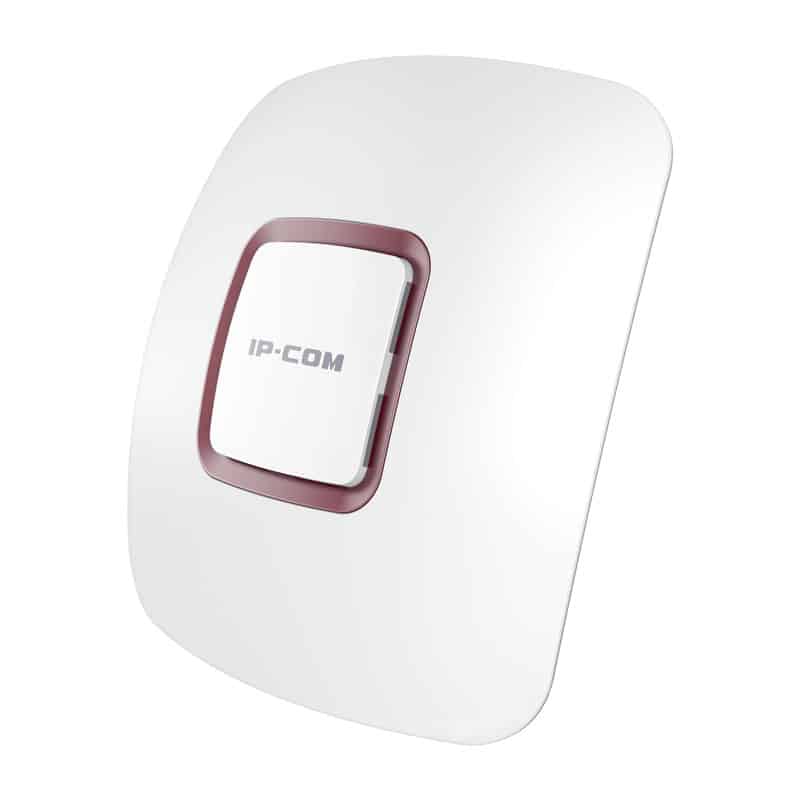

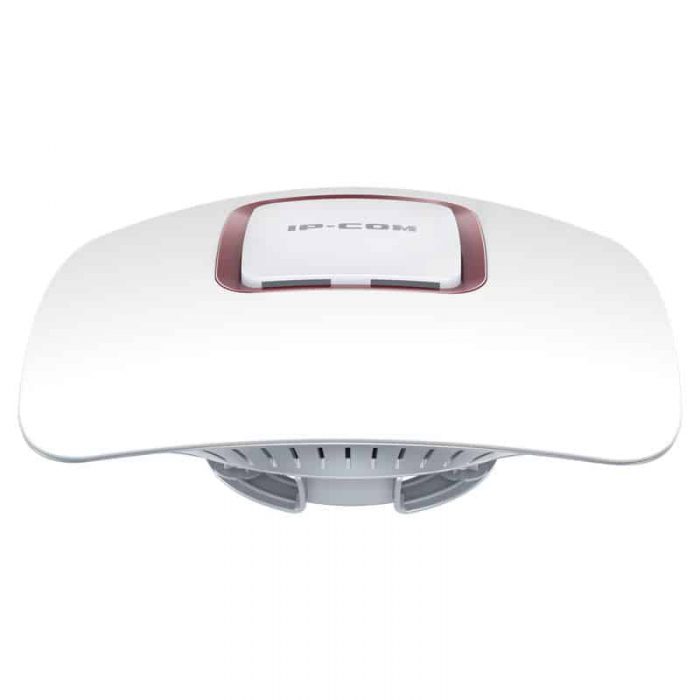

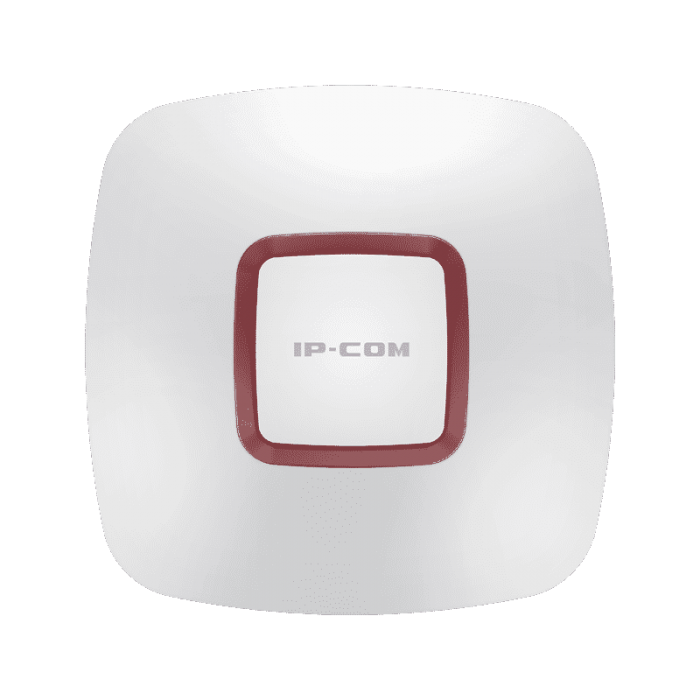

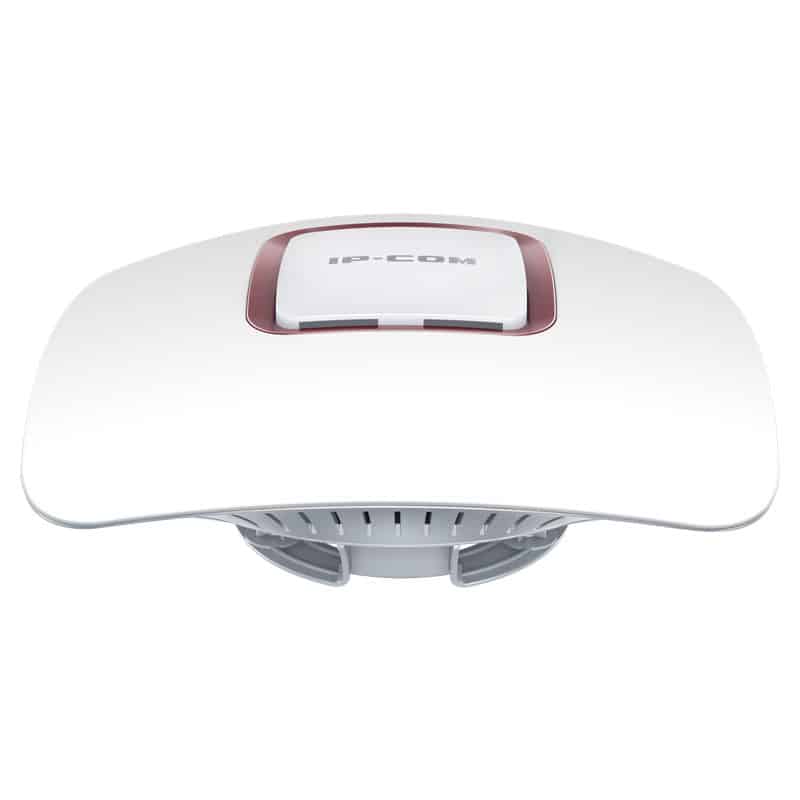

اکسس پوینت دیواری AP375

  • طراحی دیواری / سقفی

  • 2 پورت گیگابیتی شبکه

  • حداکثر نرخ بی سیم تا 2100mbps

  • سازگار با استاندارد PoE 802.3at

  • مدیریت یکپارچه با اکسس پوینت کنترلر AC1000،AC2000،AC3000

  • 3 سال گارانتی آونگ

Product Information
AP375Model
Ceiling and Wall Mount
Mounting
234mm*234mm*58.4mmDimensions
Hardware Specifications
2.4GHz/5GHz
Frequency Bands
1500Mbps or 2100Mbps
PHY data rates
IEEE 802.11n/g/b,802.11ac/n/a
Wi-Fi Standards
Up to 120 users(30 on 2.4GHz Radio,45 on 5GHz Radio1,45 on 5GHz Radio 2)
Recommended Concurrent Users
2*10/100/1000Mbps PoE/LAN port
Interfaces
1*RESET
Buttons
4*3dbi dual band Omni-directional antenna
Antennas
20.5W
Max Power Consumption
PoE 802.3at compliant
Power Supply
2.4GHz 64mw
5GHz 64mw
Maximum Transmit Power
MCS0:-88dbm
MCS7:-72dbm
Receiver Sensitivity
Software Specifications
AP,WDS,Client+AP
Operating mode
Enable or Disable
WiFi Radio
Up to 8 on Radio 1,Up to 4 on Radio 2,Up to 8 on Radio 3
BSSIDs
hiding Enable or Disable
SSID
Support
User Isolation
Connected user number limitation for every SSID
Clients Limit
802.1Q,4,094 VLAN IDs(1 to 4,094)and SSID-based VLAN assignment
VLANs
Support
RSSI Threshold
Support
WMM Capable
Support
(Power Save(APSD
Support
Airtime Fairness
Support
Band Steering
Support
Spectrum Analysis
(Support(Pair with AC3000
Automatic channel control
Adjustable step by 1dbm
Adjustable Power
Connect limitation based on mac address
Access Control
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Wireless Security
Support
DHCP Server
PPTP,L2TP
VPN Pass-Through
Support
Schedule Reboot
PingNetwork Diagnoses
Support
Time&Date Setting
Support
WiFi Client Association Status
Status Statistic and Event Log
System Monitoring
Support
Backup Configuration
Support
Restore Configuration
Support from Web UI or AP Controller
Reset Device
Support from Web UI or AP Controller
Username Management
Support from Web UI or AP Controller
Firmware Upgrade
Support from Web UI or AP Controller
Reboot Device
by AC1000,AC2000,AC3000
Centralized Management
Working Environment
℃45~℃10-
Operating Temperature
℃70~℃30-
Storage Temperature
10%-90%
(non-condensing)
Operating Humidity
10%-90%
(non-condensing)
Storage Humidity
192.168.0.254
Default Login IP
admin
Default User Name
admin
Default Password
FCC/CE/RoHS
Certifications
